| Machineno | 1092-03031 |
| Machine type | Milling Machine - Vertical |
| Make | EHLMANN |
| Type | Picomax 21M |
| Build year | 2017 |
| Control | NC |
| Storage location | Deutschland |
| Origin | Switzerland |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| x-travel | 450 mm |
| y-travel | 260 mm |
| z-travel | 450 mm |
| control | NC |
| turning speeds | 50-6.300 U/min |
| feed | 0-2000 m/min |
| rapid traverse | 7200 mm/min |
| tool taper | SF 32 Fehlmann |
| clamping table | 450 x 260 mm |
| bore spindle stroke | 110 mm |
| Number of axles | 3 St. |
| Number of working hours | 2060 h |
| total power requirement | 2,9 kW |
| weight of the machine ca. | 900 kg |
| dimensions of the machine ca. | 1700 x 1350 x 2000 mm |
|

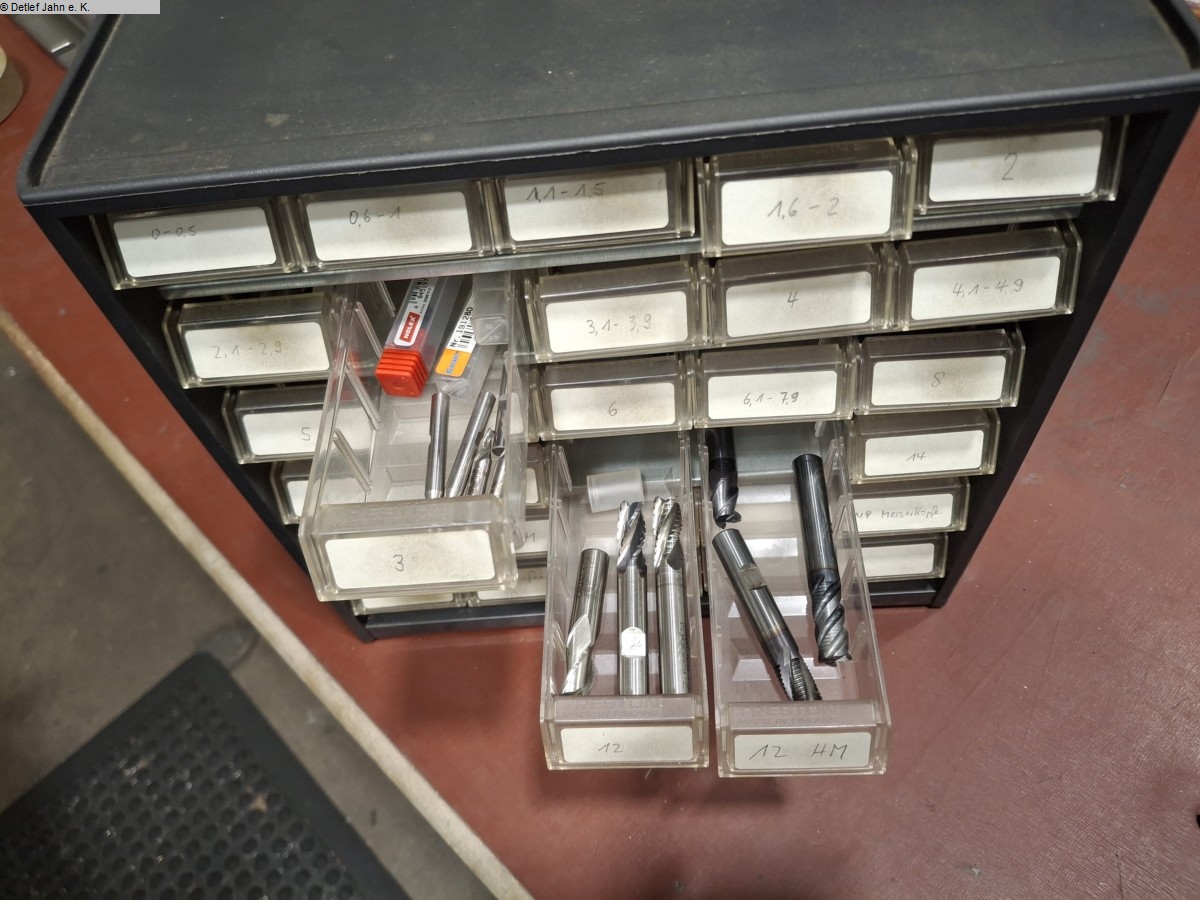

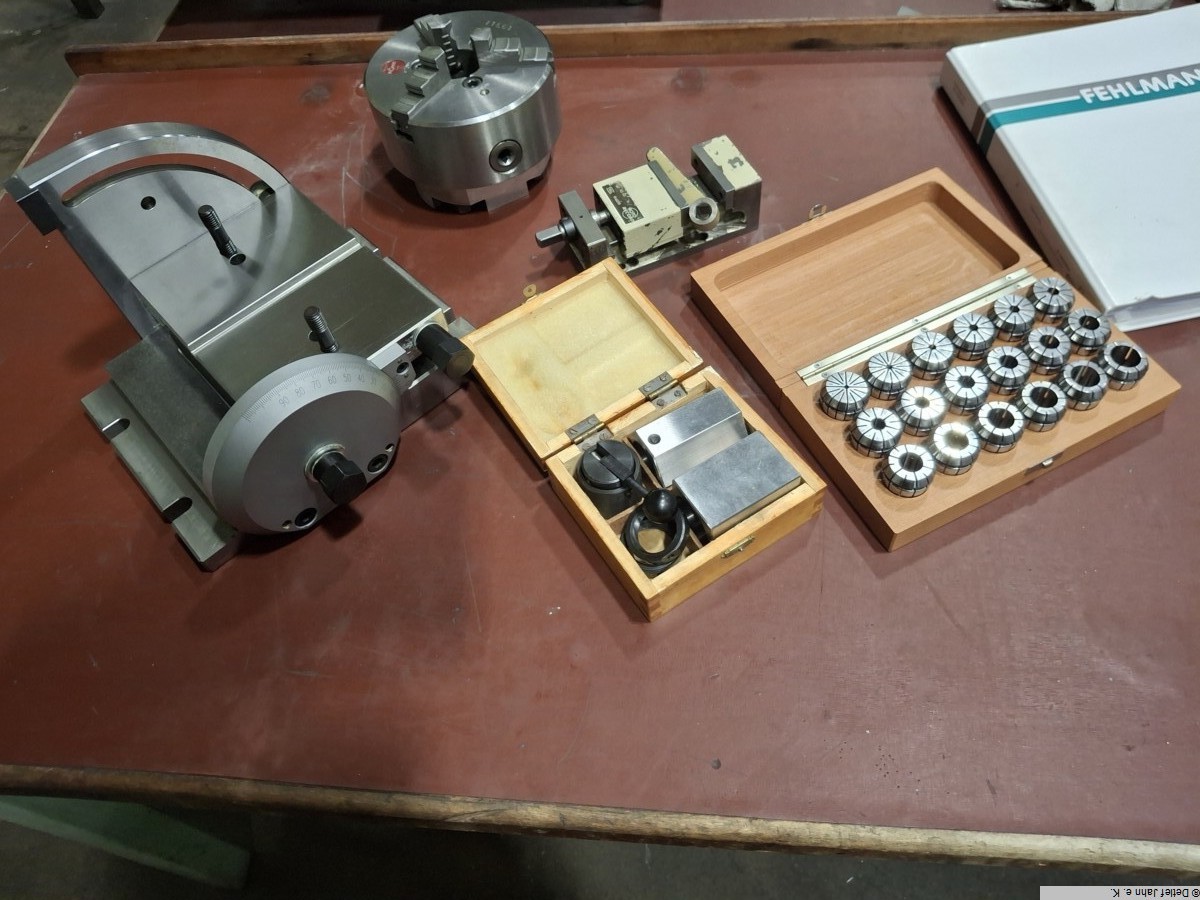

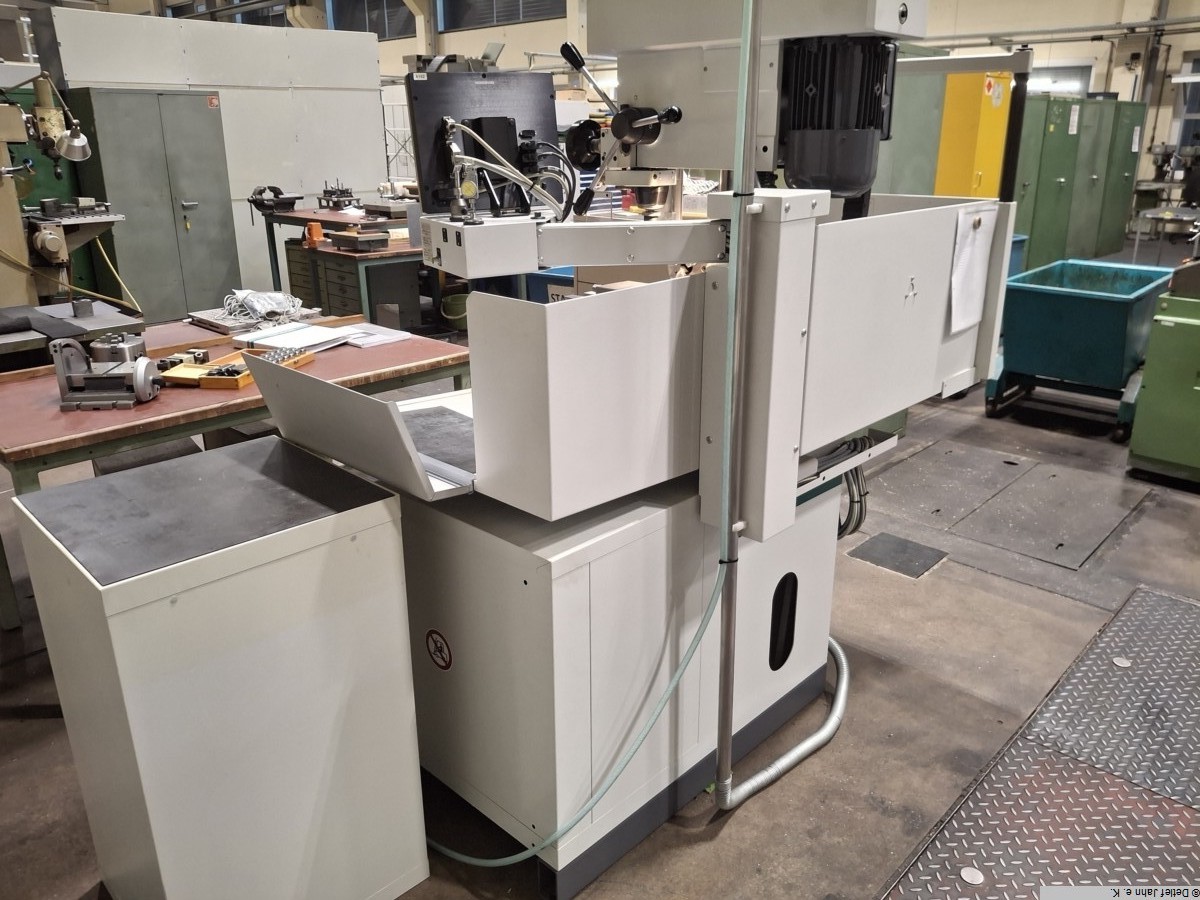

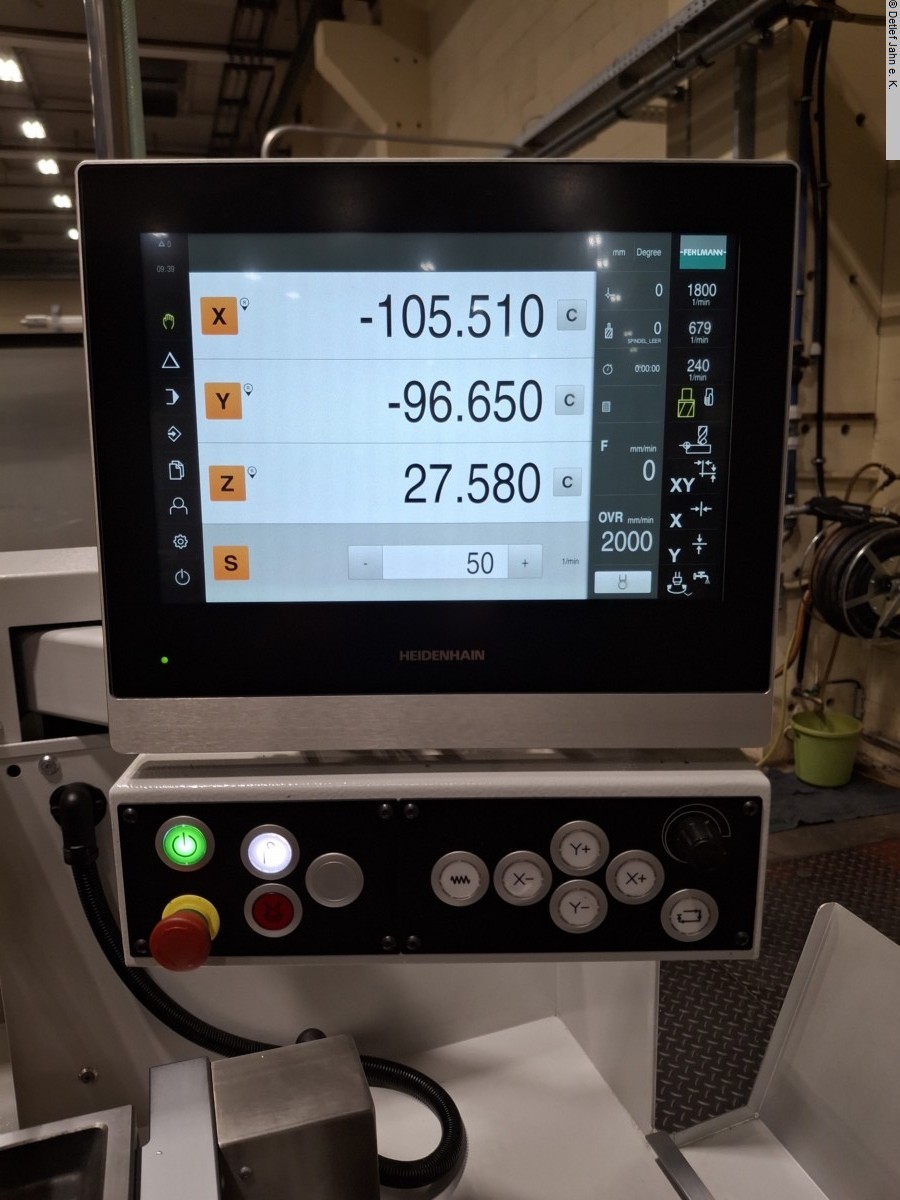

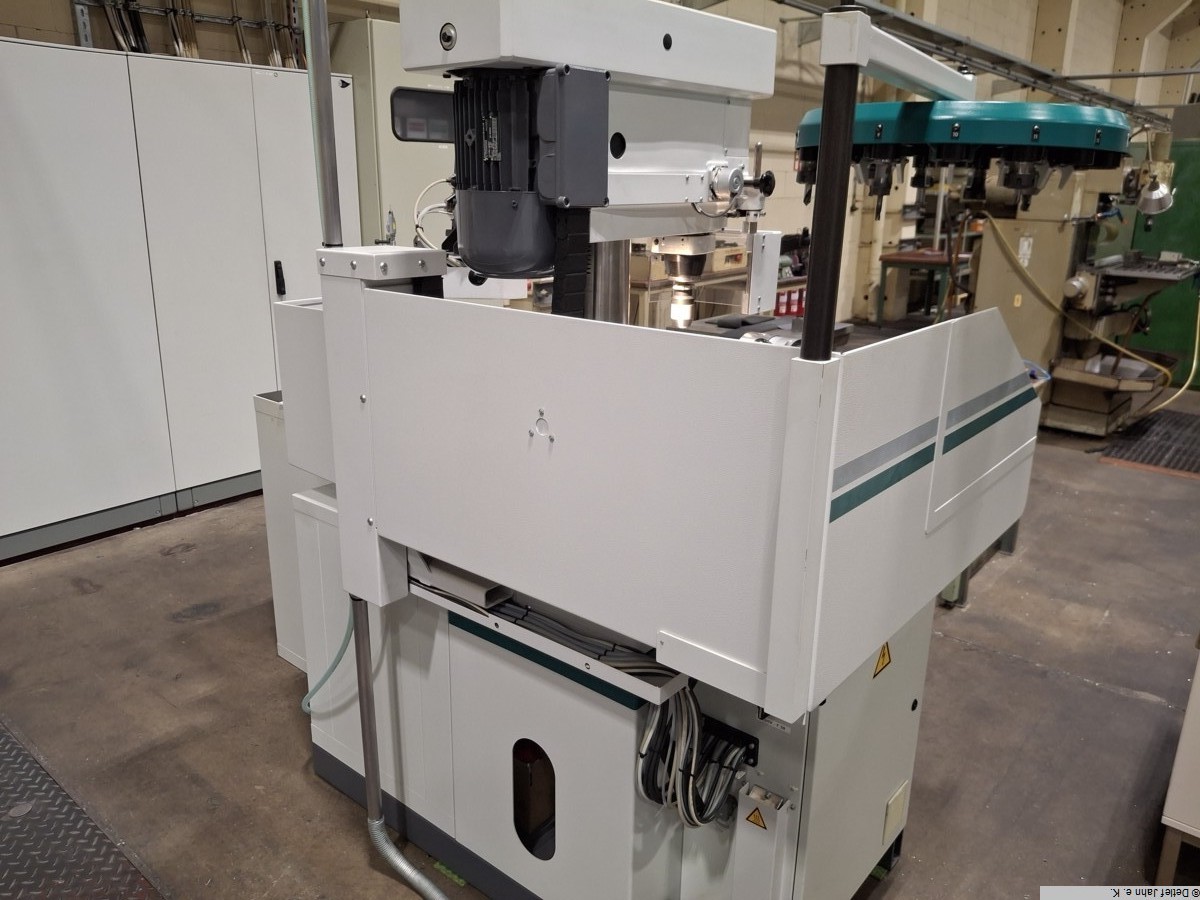

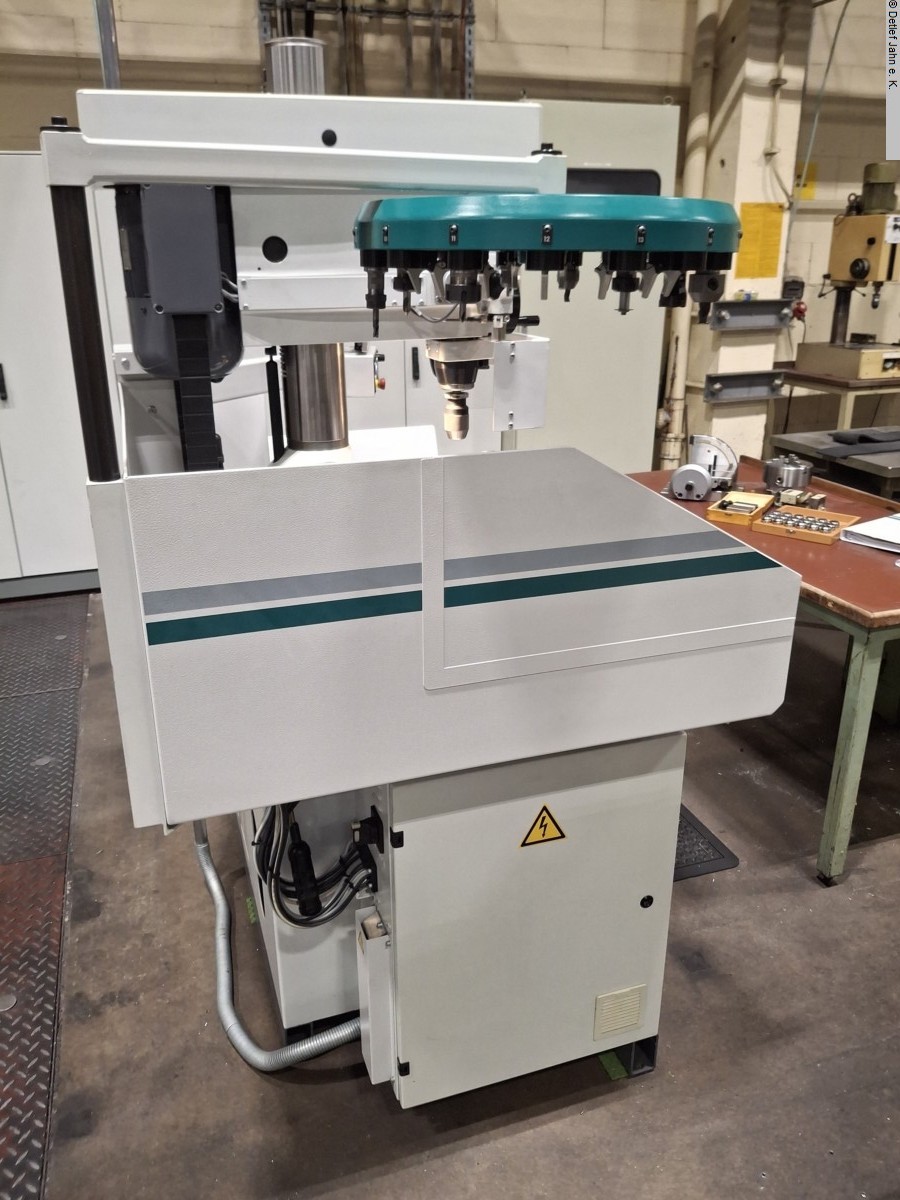

FEHLMANN Picomax 21M precision milling, drilling and coordinate machine The machine has been used very little and is in top condition. The accessories enable almost any form of machining of individual parts, except for contours. Year of manufacture: 2017 Operating hours: 2060 Connection 400V/50Hz Space requirement Width/depth/height 1700x1350x2000 Machine - Heidenhain Positip 8013 Active with touchscreen - Electronic, infinitely variable spindle speed control 50-6300 rpm - Power 2.9 kW, max. 40 Nm - Feed 0-2000 mm/min manually controllable and programmable - Weight approx. 950 kg - SF 32 quick-change tool system - Right/left thread cutting - LED lighting - Adjustment ranges: 450 mm (column), 110 mm (quill) - Adjustable stop for quill - Machine base with built-in tool cabinet with storage for spindle tools - Fine depth adjustment Z-axis via handwheel - KS 323 M coordinate table for manual and automatic positioning - Direct measuring system in X and Y, travel distances X/Y 450 x 260 Accessories - Fehlmann sine table - Fehlmann part setting device, detent adjustable from 15 to 120 degrees, any intermediate angle possible - Röhm Dmr 140 chuck with 40 mm passage for part setting - ER32 collet holder incl. 18 collets for part setting - Allmatic 160 mm vice with integrated stop system (stop pin in jaws) - 4/6-sided partial device for collets 5c (without collets) - Röhm Dmr 160 turning chuck for clamping in vice - Tool magazine with swivel arm for 15 tools SF32 - Tool clamping device SF32 - 20 quick-change inserts SF 32 (collets, cutter heads, milling cutters) - 18 collets ER 16 - 35 collets ER 25 - Edge finder and insert SF32 with fine lever gauge for alignment - Preparation for electronic probe - Various milling tools up to Dmr 20 - Technical documentation in electronic and paper form - Heidenhain operating and programming instructions Positip 8013 - Machine is without coolant system Control functions - Manual and semi-automatic machining (manual, MDI, NC, Z-axis manual) - Storage of speeds, tool data, zero points and programmes - Processing of linear sets, hole patterns, rectangular pockets, no circular pockets (PTP control) - Printer output, file import and export Translated with DeepL.com (free version) |
