| Machineno | 1092-03017 |
| Machine type | Tool Grinder - Universal |
| Make | EWAG |
| Type | RS 12 |
| Build year | 1989 |
| Control | conventional |
| Storage location | Western Europe |
| Origin | Switzerland |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| max. grinding diameter | 50 mm |
| grinding length | 130 mm |
| workpiece length | 200 mm |
| total power requirement | 2,2 kW |
| weight of the machine ca. | 1200 kg |
| dimensions of the machine ca. | 2 x 2 x 2 m |
|

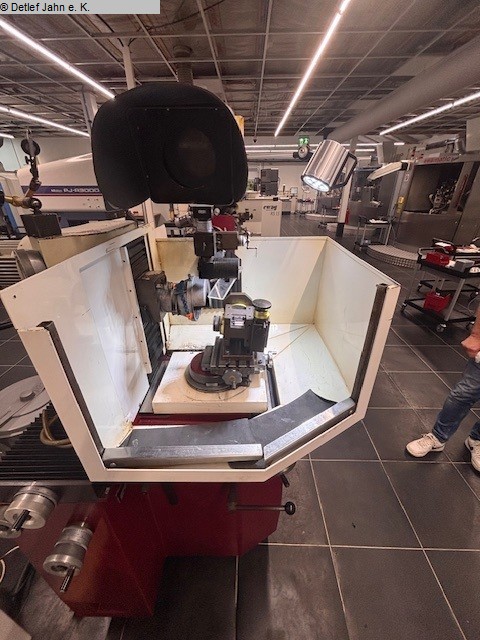

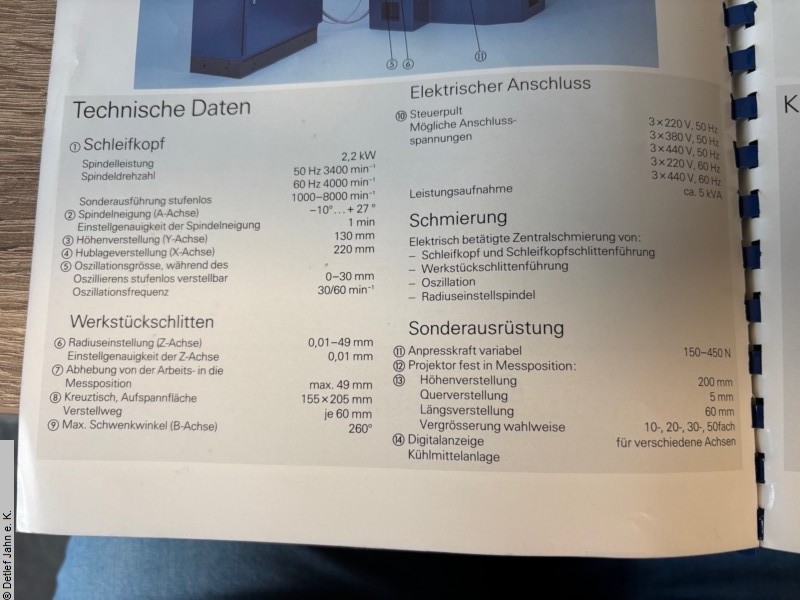

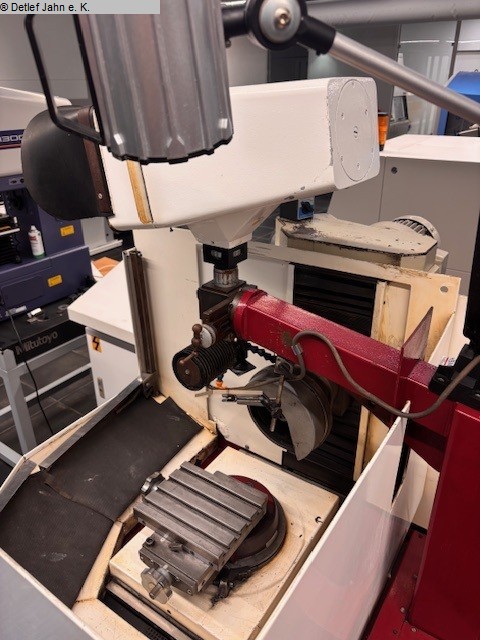

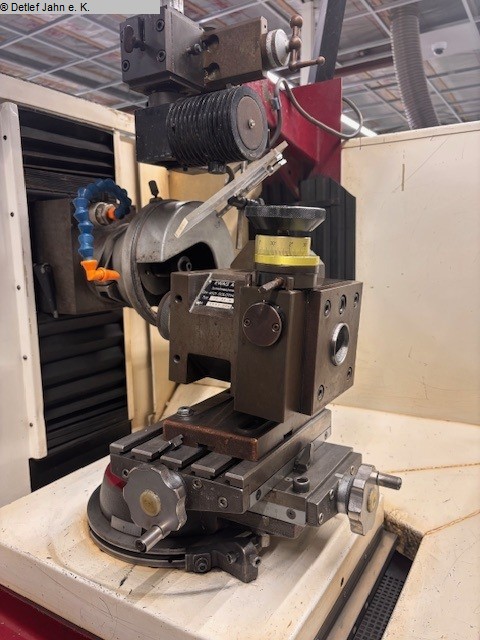

EWAG RS 12 universal grinding machine, built in 1989, technically and visually in good condition Grinding head: - Motor power: 2.2 kW - Spindle speeds: 1,000 - 8,000 rpm - Spindle inclination (A axis): -10° to +27° - Adjustment accuracy 1 min - Height adjustment (Y axis): 130 mm - Stroke range (X axis): 220 mm - Oscillation stroke, continuously adjustable during oscillation: 0-30 mm - Oscillation frequency: 30/60 rpm Workpiece slide: - Radius adjustment (Z axis): 0.01-49 mm - Adjustment accuracy: 0.01 mm - Retraction of the slide from the grinding to the measuring position: max. 49 mm - Cross table, clamping surface: 155 x 205 mm - Adjustment range X - Y: 60 mm each - Maximum swivel angle (B axis): 260° - Connection voltage: 380 V - Weight: 1200 kg Several grinding discs are supplied, but not the workpiece holder shown in the picture. |
