| Machineno | 1092-02978 |
| Machine type | CNC Turning- and Milling Center |
| Make | BOLEY |
| Type | BE 42 |
| Build year | 2007 |
| Control | CNC |
| Storage location | Germany |
| Origin | Germany |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| turning diameter | 42 / 140 mm |
| turning length | 170 mm |

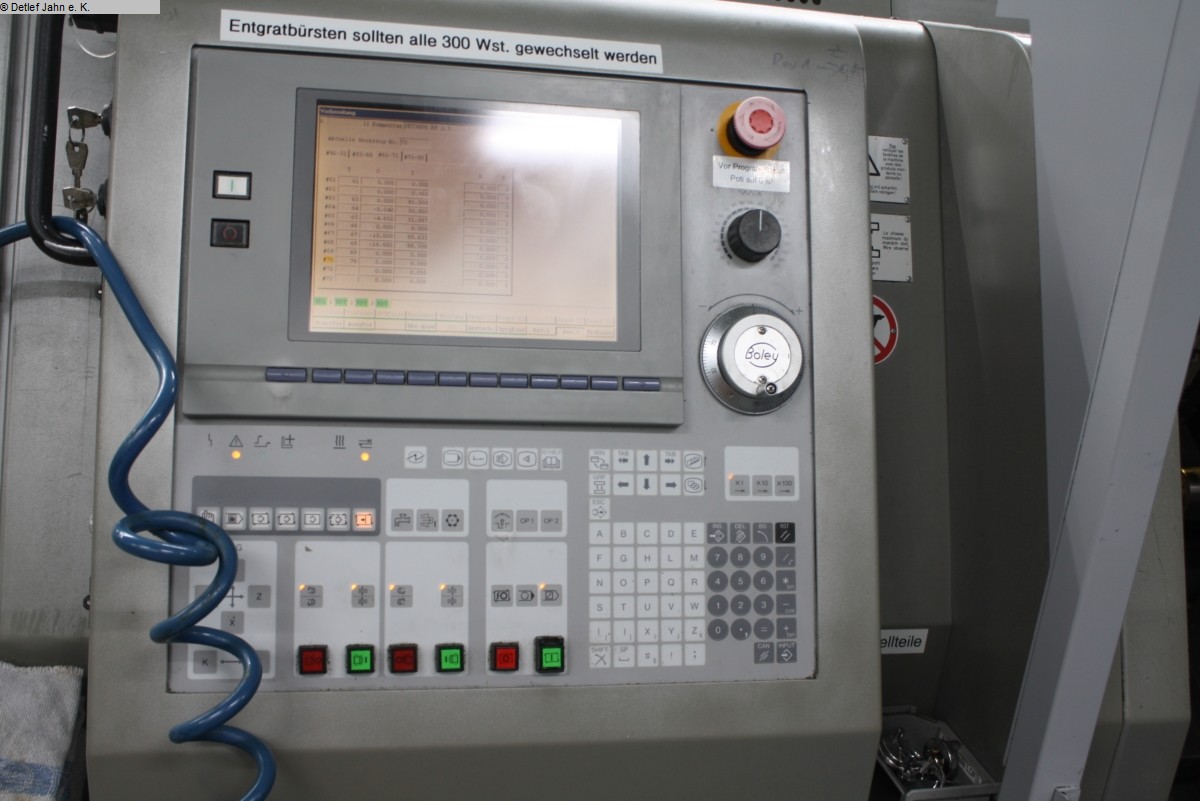

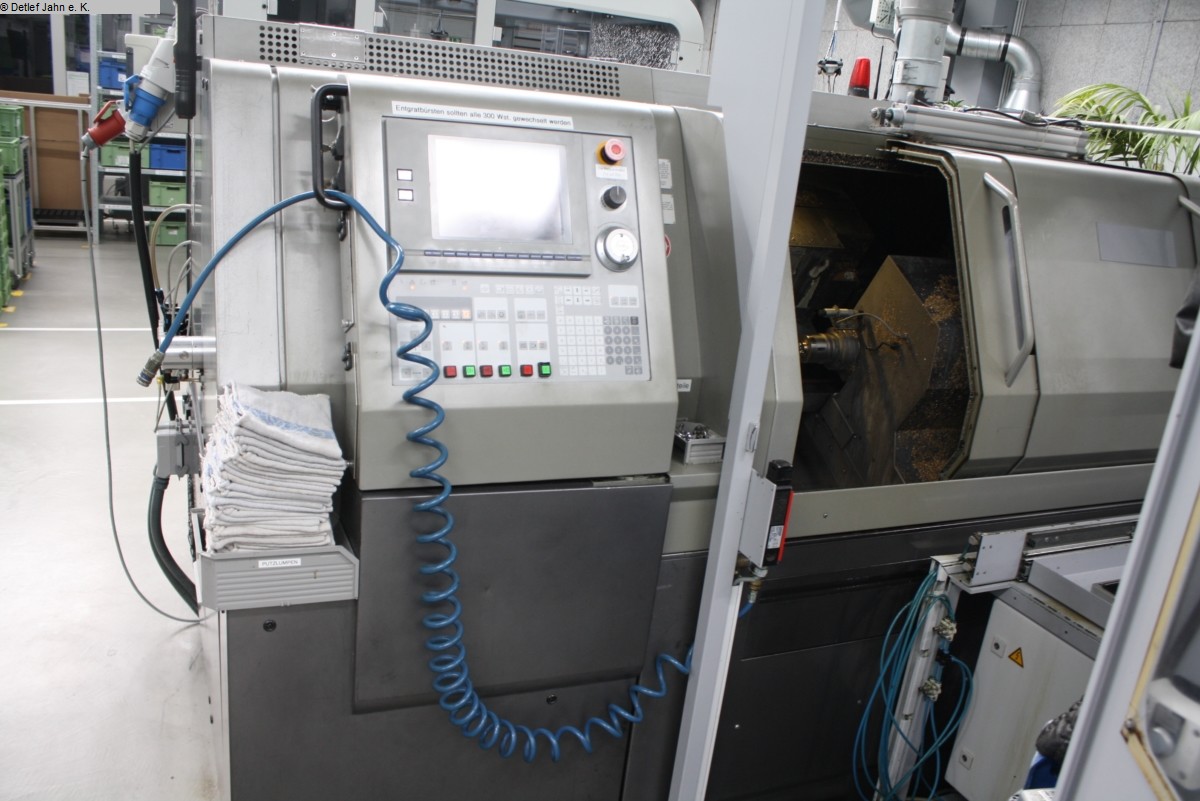

| control | Mitsubishi Meldas |
| turning speeds | 80-8.000 U/min |
| c-axis | 0,001° |

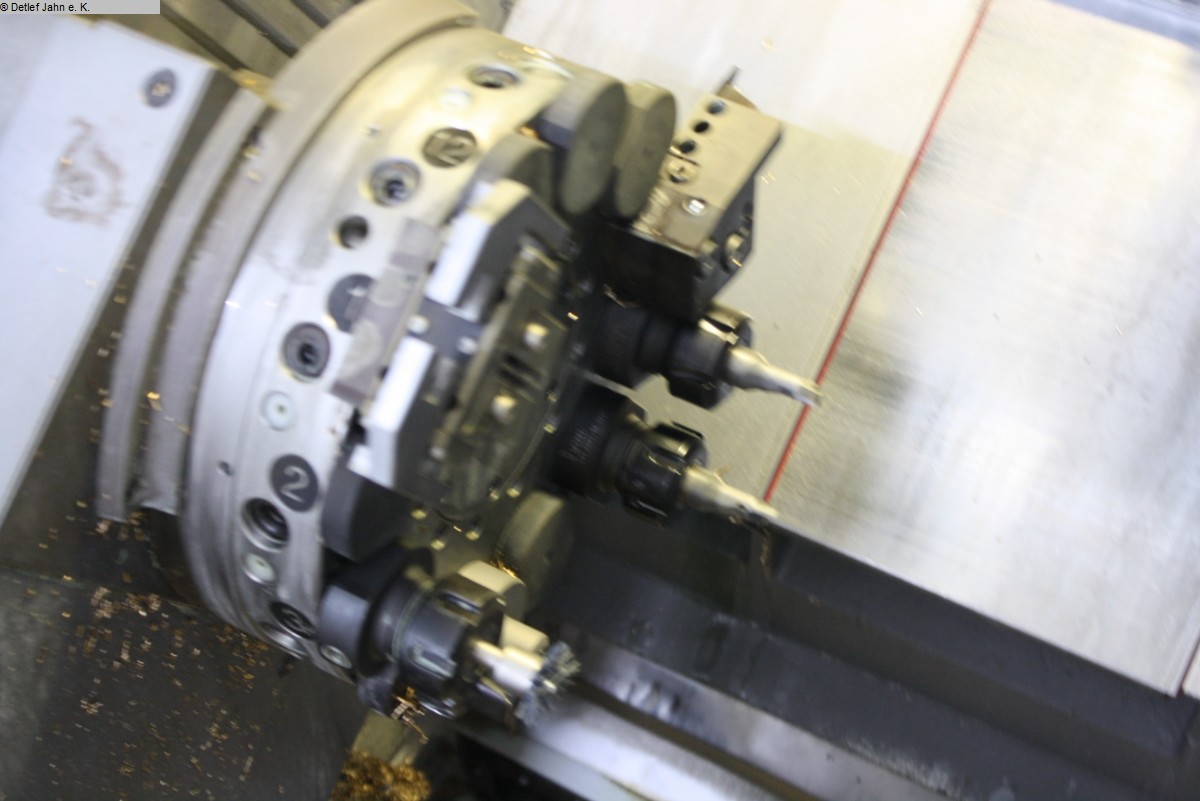

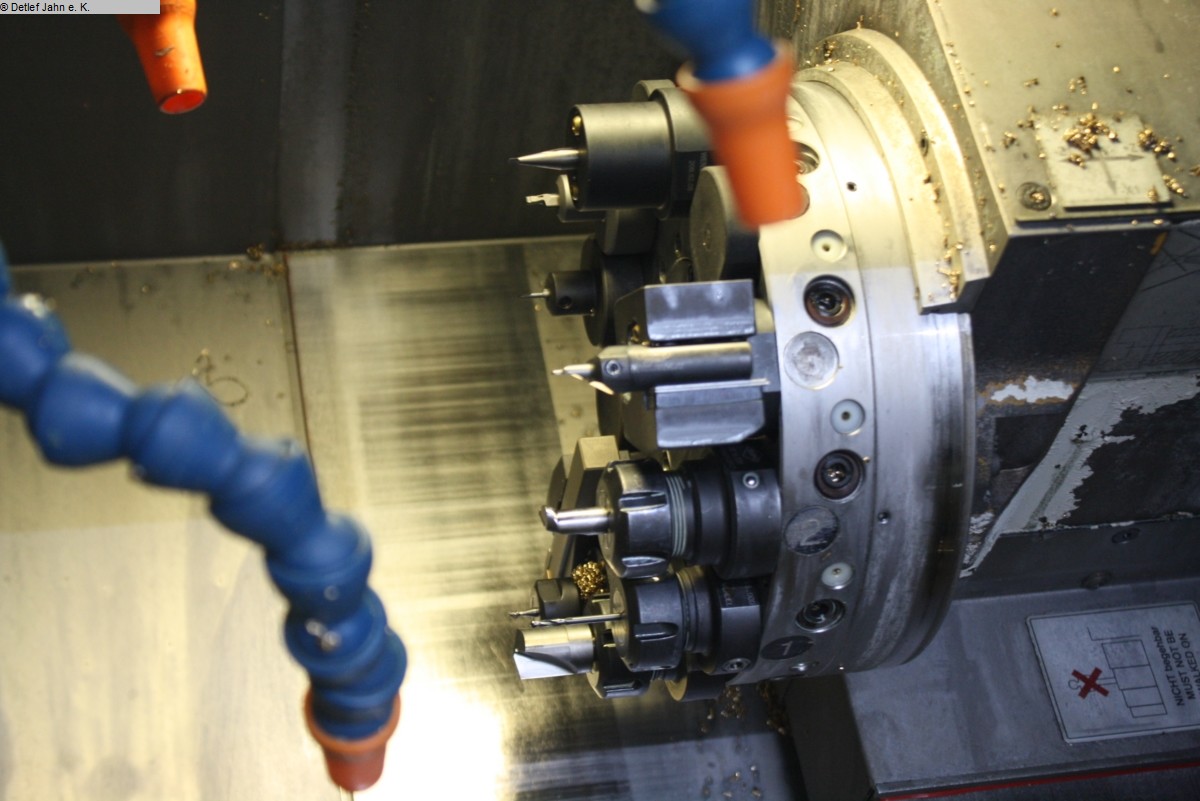

| turret (x-stations) | 2x 12 (VDI 20) angetrieben |
| turning speeds | 45-4.500 U/min |
| gripping station | 42 mm |
| spindle | 1 kW |
| turning speeds | 60-6.000 U/min |
| c-axis | 0,001° |
| number of controlled axis | 8 |
| collet unit | 48 DIN 6343 . |

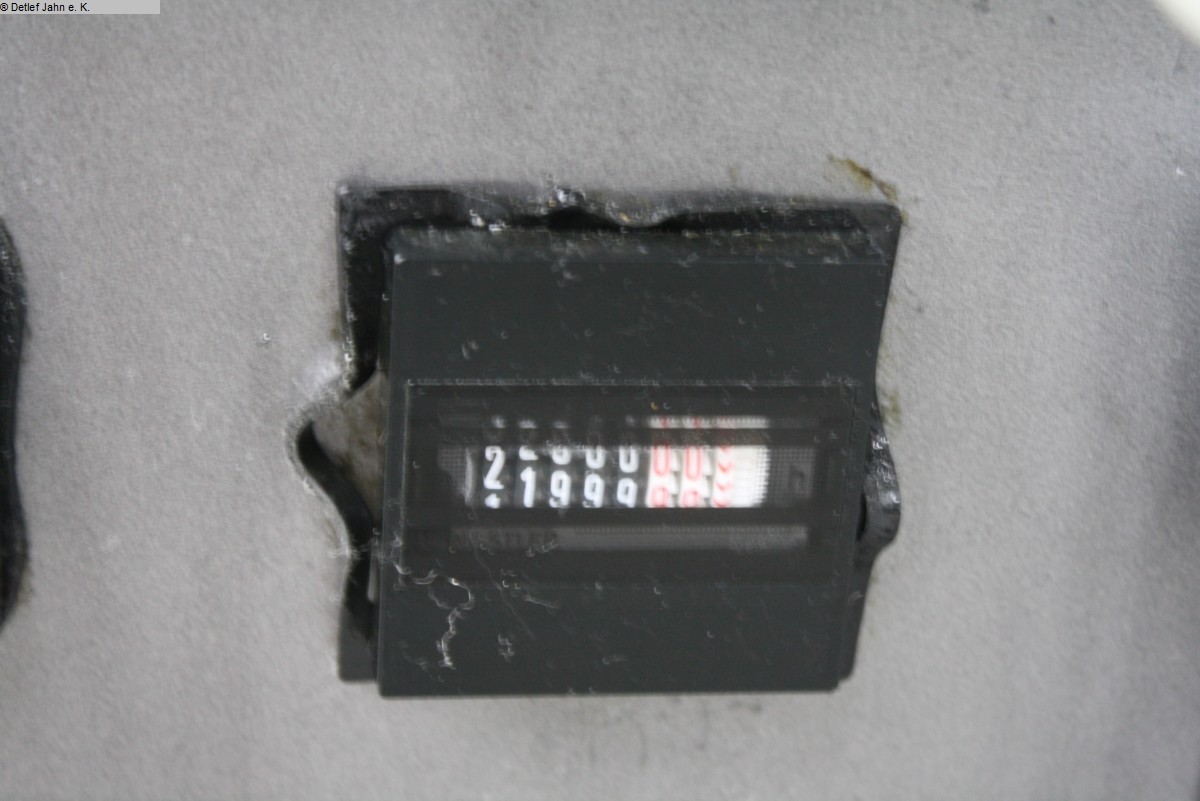

| Number of working hours | 10769 h |

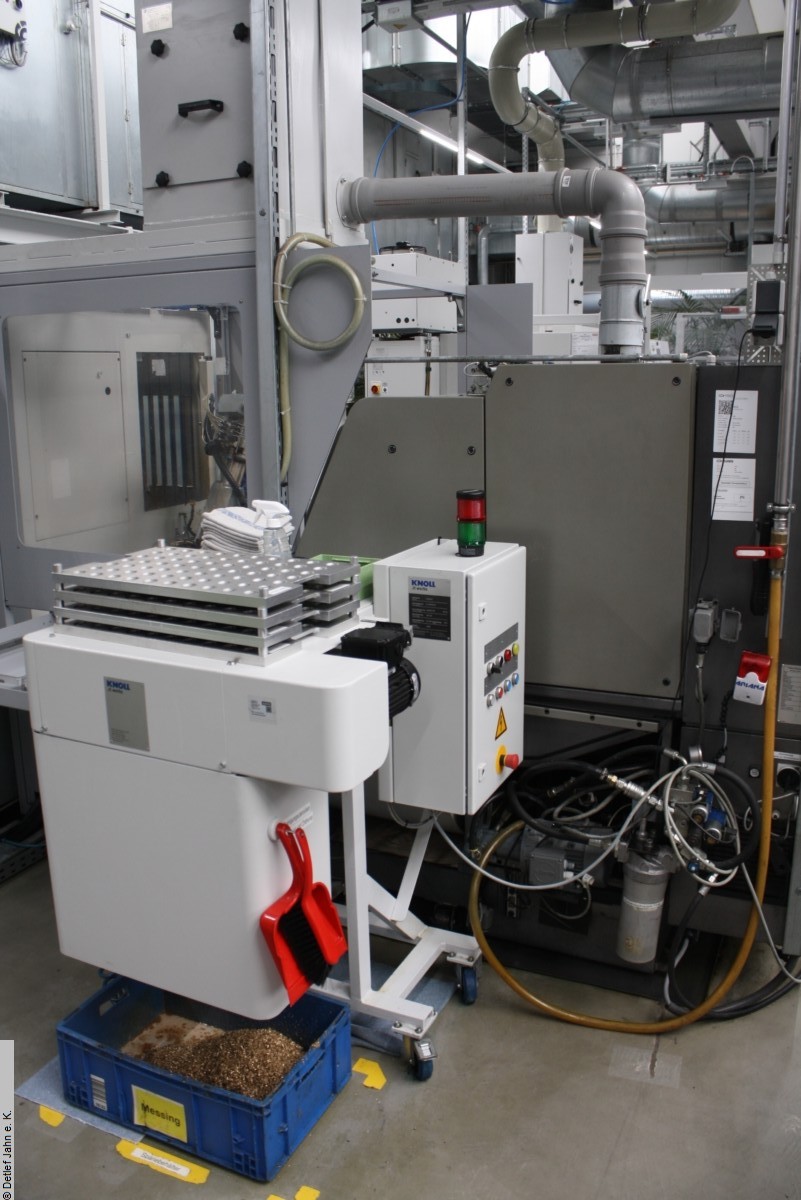

| chip conveyor | ja/yes Bj. 2018 |
| total power requirement | 7,5 / 11 kW |
| weight of the machine ca. | 3,3 t |
| dimensions of the machine ca. | 2,4 x 1,6 x 2,2 m |
|

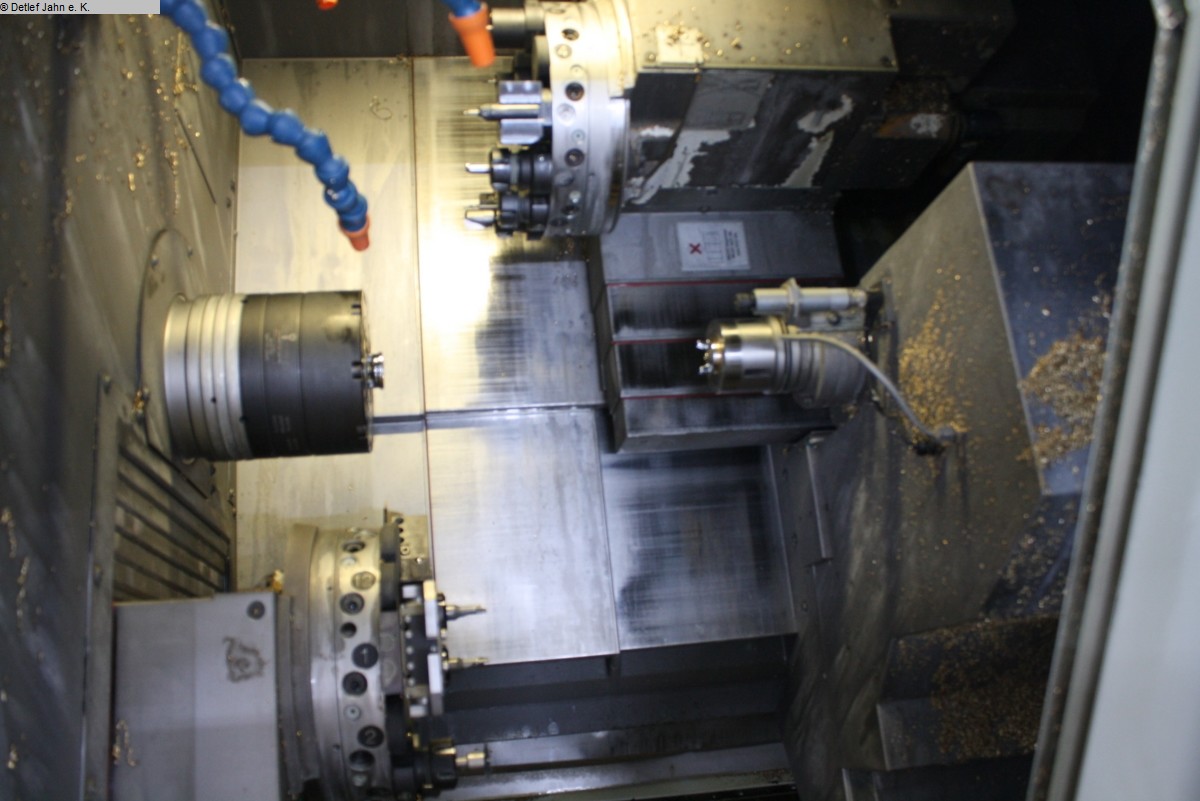

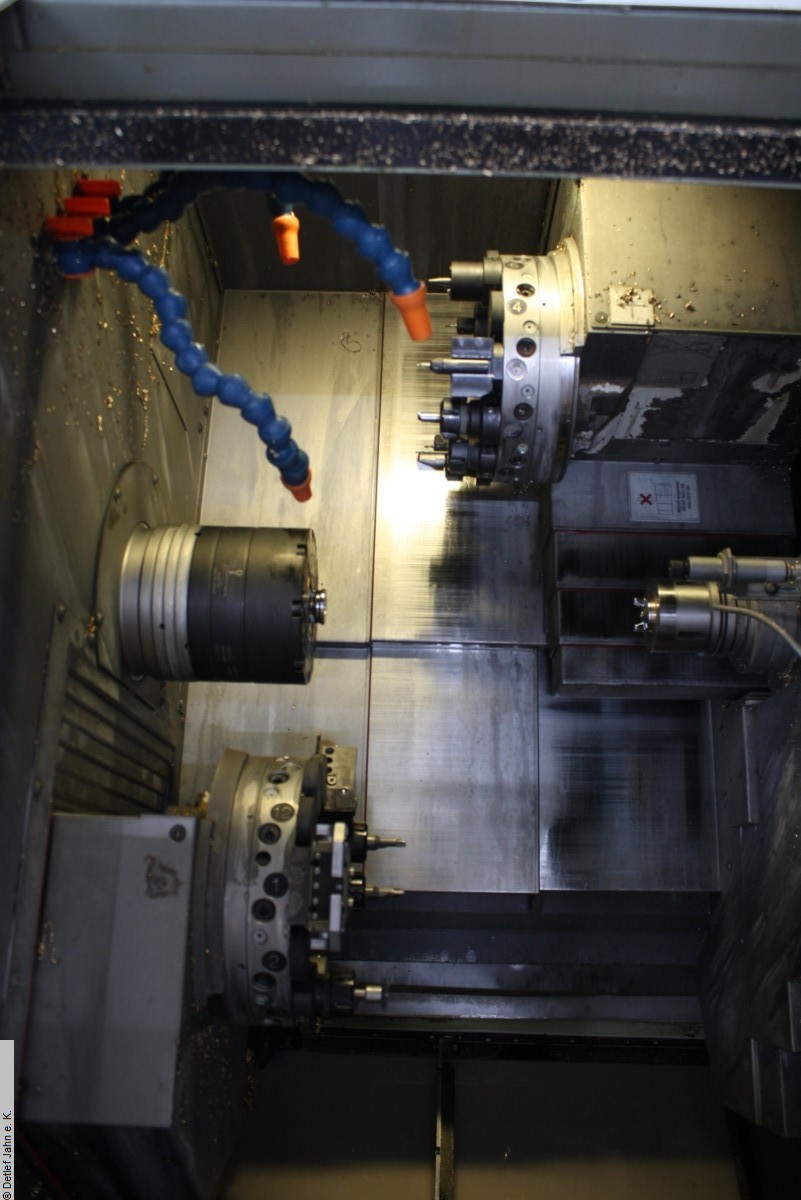

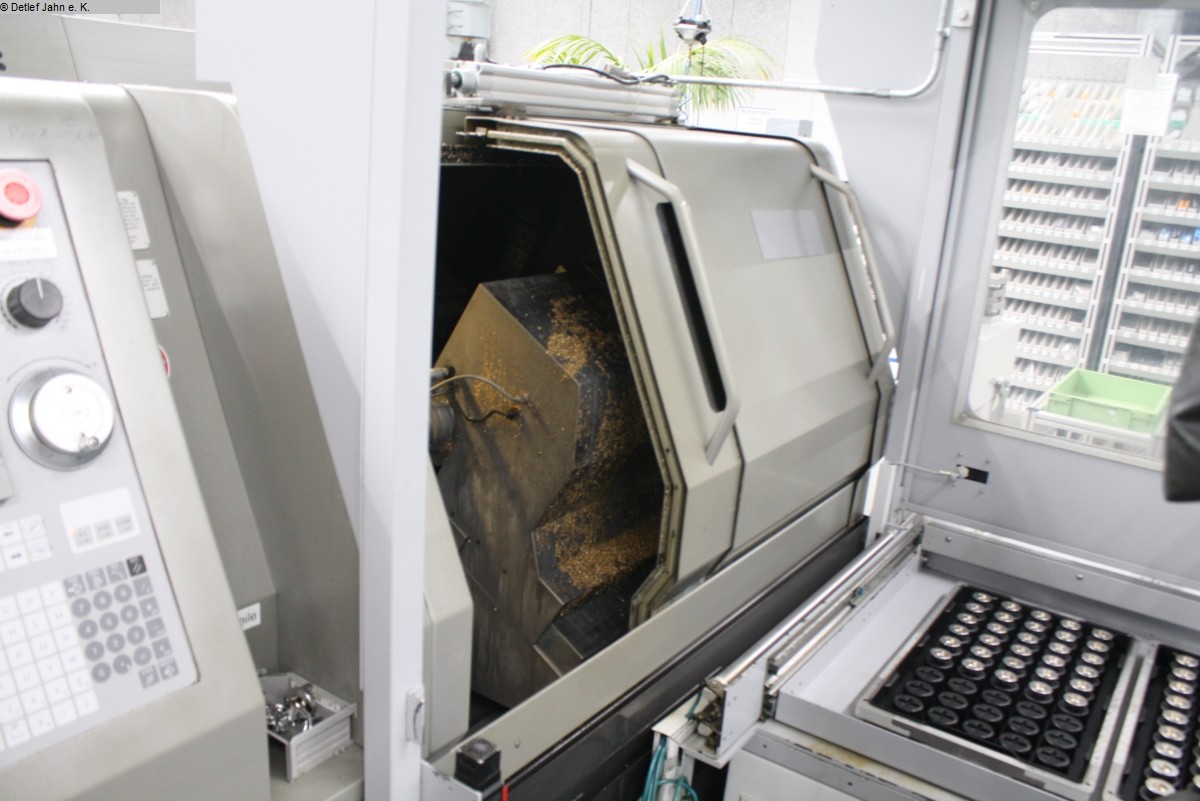

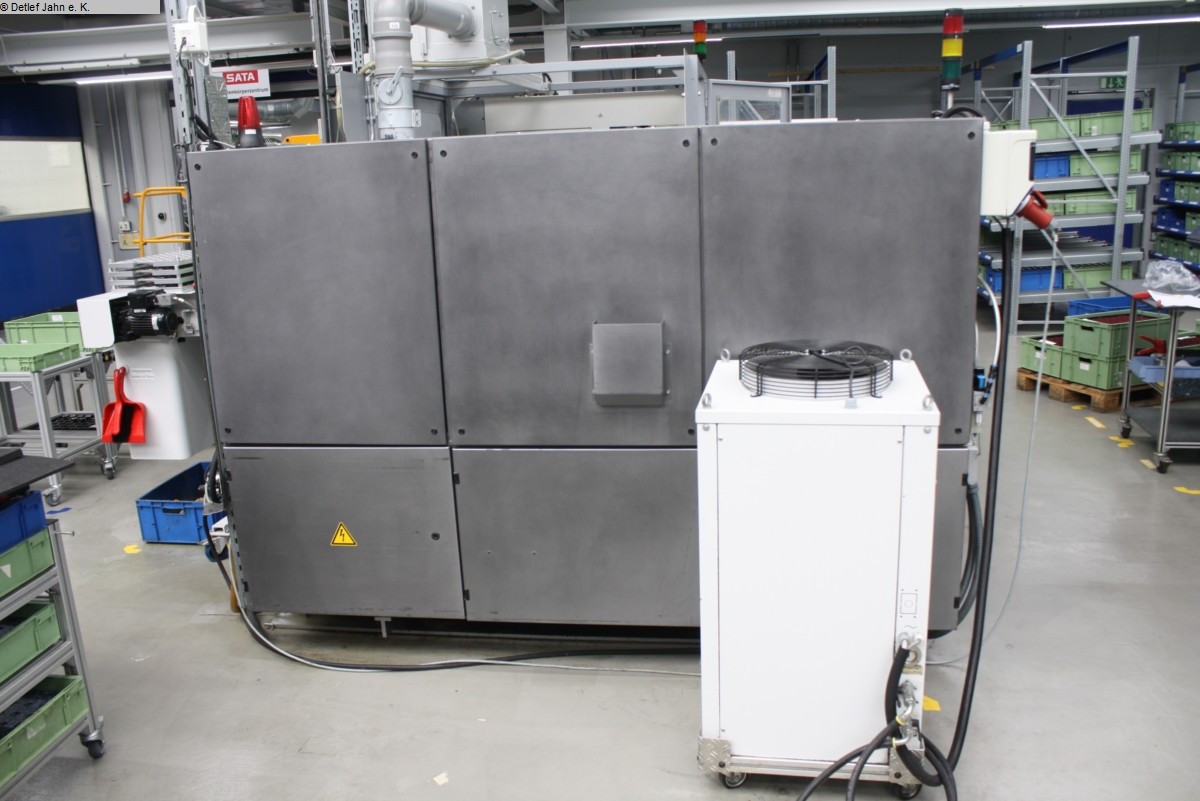

CNC turning and milling machine CITIZEN BOLEY BE 42, year 2007 Simultaneous working with 7 axes on main and pick-up spindle very good condition, operating hours 21.999h (September 2024) Accessories: # Various tool holders: 2x axial driven and numerous rigid tool holders # collet chuck for collets type 173E # additional coolant cooler # Knoll chip conveyor, year of construction 2018 The Boley BE 42 was connected to a robot. This interface has been back to its normal state and a loading magazine interface has been fitted. |
